What are those blue things? Part 2

Oh, Oh, HUH?
09-29-08_1602-1.jpg picture by Javaman8263
Mind you when I took the above photo with my crappy little phone, it was Sept 29th!!!

It wasn't even freakin' October yet!!!!!

Sigh. Soon we will be seeing X-Mass decorations on sale after the 4th of July.

Anyway, Part two of my little rain barrel ordeal.

Oh one other thing before I forget, when last I left you, I dug the hole and put in the blocks, while doing this I came across a little urban archeology...

IMG_0871-1.jpg picture by Javaman8263

A comb? whatever...

Okay, as you can see, I cut half moon openings into the tops of the barrels. I did this with a ZawSaw, using the metal blade. I first drilled a few large holes to allow the blade to pass through. It proved to be surprisingly easy. Took all of 10 minute for both.

IMG_0875.jpg picture by Javaman8263

They look kind of happy, don't they? Okay, that was very green geeky.

Bits I used...

IMG_0879.jpg picture by Javaman8263

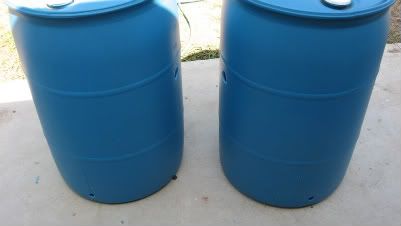

Next, using 1 3/4" corer, I cut the over flow and pass through holes on each barrel.

IMG_0876.jpg picture by Javaman8263

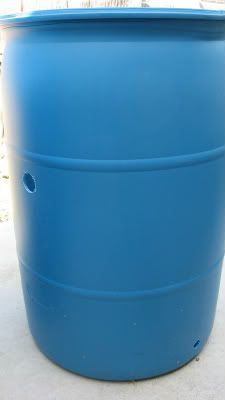

here's a better pic

IMG_0877.jpg picture by Javaman8263

next I cut 1" hole near the bottom for the 3/4" pvc pipe. I used a 1" paddle drill bit.

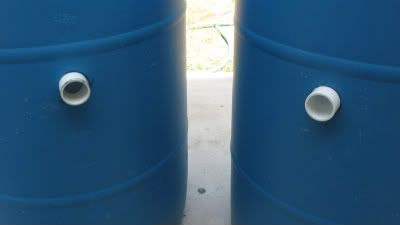

Next, you need a short piece of 1 1/2" pvc , 1 coupler and a street elbow. I put the little piece of pvc in the hole...

IMG_0880.jpg picture by Javaman8263

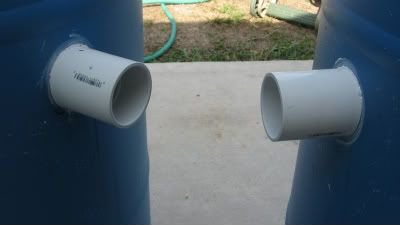

and glued the coupler on one side...

IMG_0886.jpg picture by Javaman8263

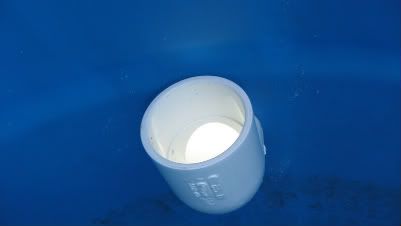

and glued the street elbow on the other... Pushing them tightly together.

IMG_0881.jpg picture by Javaman8263

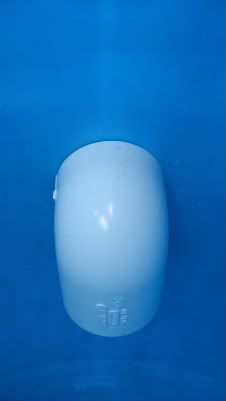

pointing up on the main barrel side and...

IMG_0882.jpg picture by Javaman8263

pointing down on the reserve barrel side.

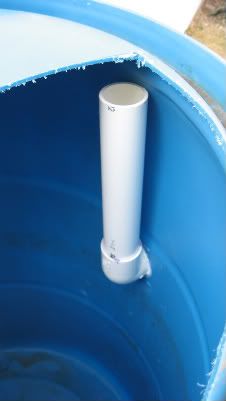

Here is the completed PVC pipe on the main barrel.

IMG_0888.jpg picture by Javaman8263

It's pointed up so as when the barrel is full, the water once it has sort it's level will then drain into the backup barrel.

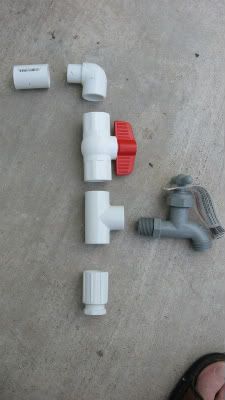

I next put together my system for the spigot and trash drain. it looks something like this...

IMG_0884.jpg picture by Javaman8263

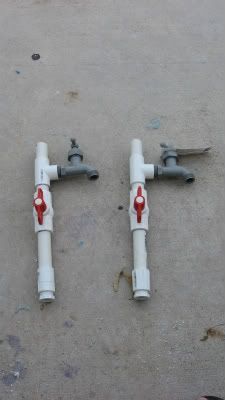

However, this is how the final looks...

IMG_0889.jpg picture by Javaman8263

Note that the cut off is below the spigot. This is so no trash from the roof, bugs, bird poop, etc will spill off with the water, instead it will settle below the spigot. I put the shut off below the spigot as well so this way I won't lose any water. I can cut it off and still use the water while cleaning the trash trap. I did this because I plan to put in a drip system for my garden. No interruption of watering.

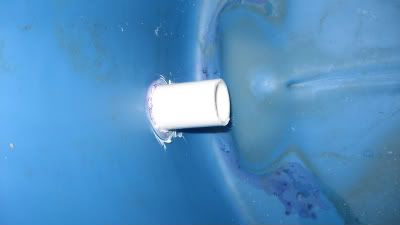

Much like the 1 1/2" pvc above I fit the 3/4" pvc in the bottom in the same manner. only this time, I just used an elbow street valve straight into the hole with a coupler on the other side. I used no additional short pieces of 3/4" pvc, just what you see.

IMG_0887.jpg picture by Javaman8263

Once everything was fitted and glued, I sealed everything with silicon sealant. No leaks yet :)

I now placed everything on a two high stack of 8" cinder block. Then joined the two barrels together...

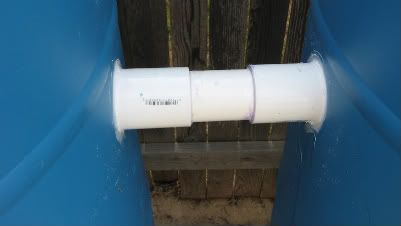

IMG_0890.jpg picture by Javaman8263

This is the overflow go between.

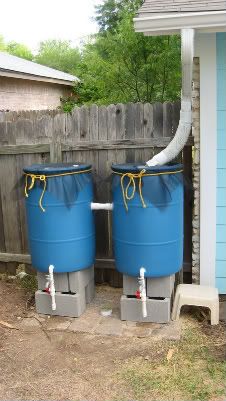

Here's a wide shot of everything together...

IMG_0894-1.jpg picture by Javaman8263

I got some vinyl screen and had some old rope laying around. I have since replaced the rope with webbing that I bought over at REI.

All told, the whole set up cost me roughly 150.00, that includes lots of mistakes, cuts, and copious amounts of swearing.

I plan on adding more barrels to this set up but putting in an additional overflow to the back up barrel.

So far so good, no leaks. ;)

Next project will be a little side deal. Small herb gardens for my wife. Made from galvanized tubs.

Cheers!!!


4 comments:

BigHeadKen - The Script Writer said...

Blue-jeans make for a pretty good filter. But if you are just trying to get rid of the big stuff, the screen mesh will do. Nice clean job on the piping.

There is a nice German company that makes a centrifigal inline filter that ties into the gutter, spits out the trash and filters the water. Given the lack of rain we have been getting they may not be worth it.

Next up, let's see the Alex Jones-esque food ration closet

BHK said...

BigHeadKen has one more thing to add, as he always seem to. Are you concerned that as the reserve barrel fills up, it will only be able to fill up to a little past the inlet? My feeling is that there will not be enough water pressure from the "main" barrel. They will hit an equilibrium that is short of being full, perhaps quite short of being full on the reserve tank.

Thomas Jefferson said...

To mr. Bigheadken.

Very good question, which was answered a couple of weeks ago with a good downpour. The back water pressure keeps the other barrel full.

As far as to the liquid dynamics as to why that works, to quote steve martin, "I don't know".
